+/- 10 V Voltage Reference

Analog Computer Voltageref 3 Analog Computer Voltageref 4

This board creates a +10V and a -10V voltage output with a LM 4040 AIZ 10,0 10V voltage reference.

The 10V are buffered by a non-inverting amplifier with an amplification factor of 1 resulting in a +10V output. This 10V is then amplified by an inverting amplifier with a factor of -1 resulting in a -10V output.

In the second revision I replaced one of the 10k resistors of the non-inverting buffer with a combination of a 8.2k resistor and a 5k trimmer, to allow fine tuning of the output voltage.

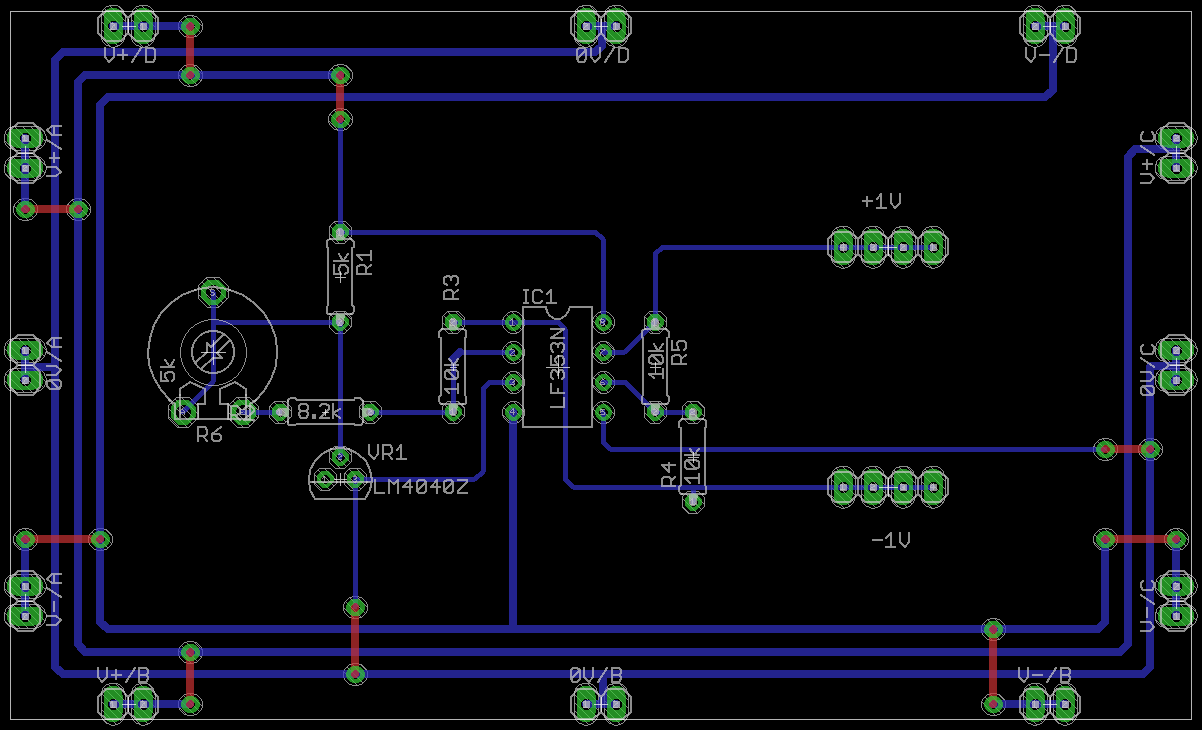

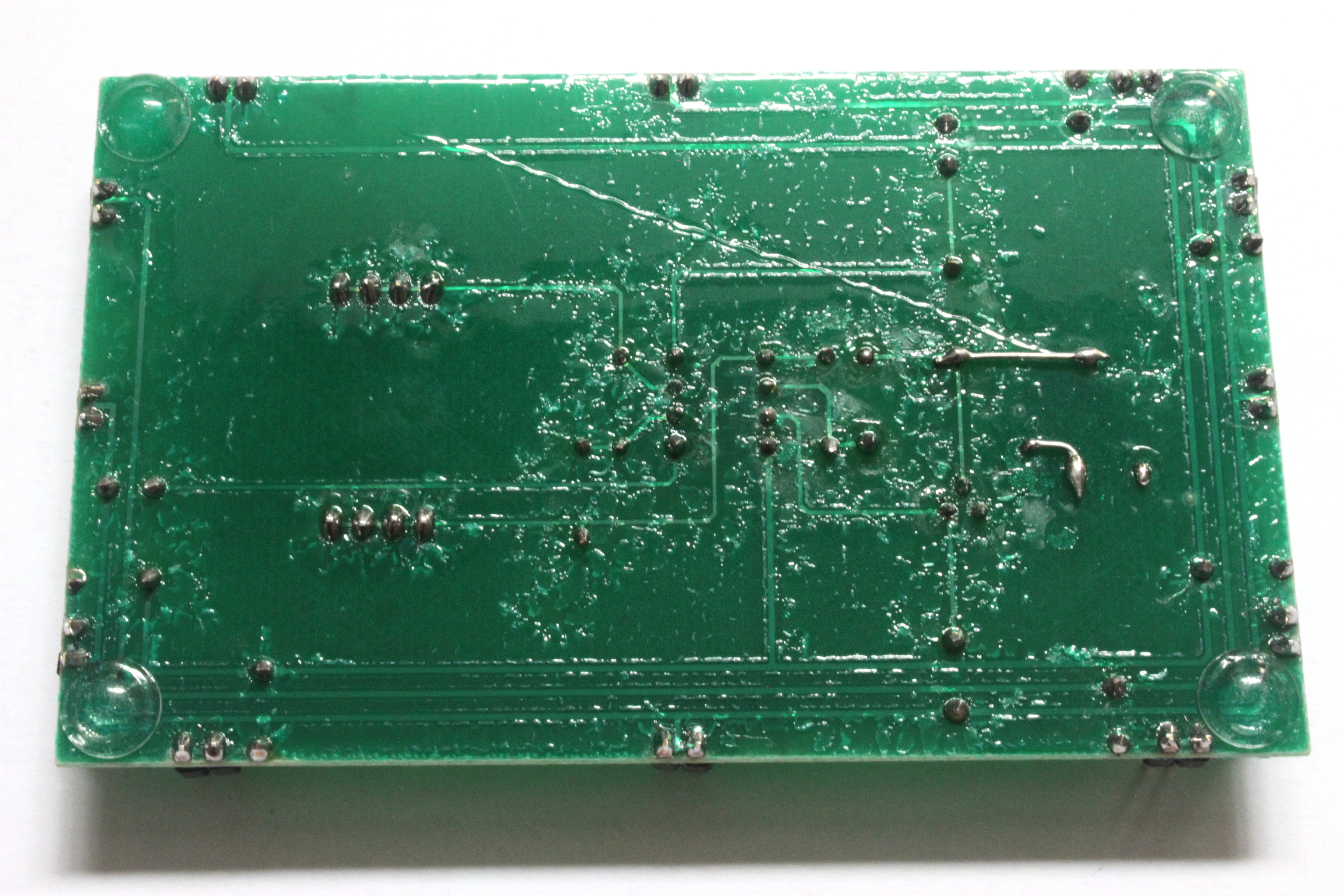

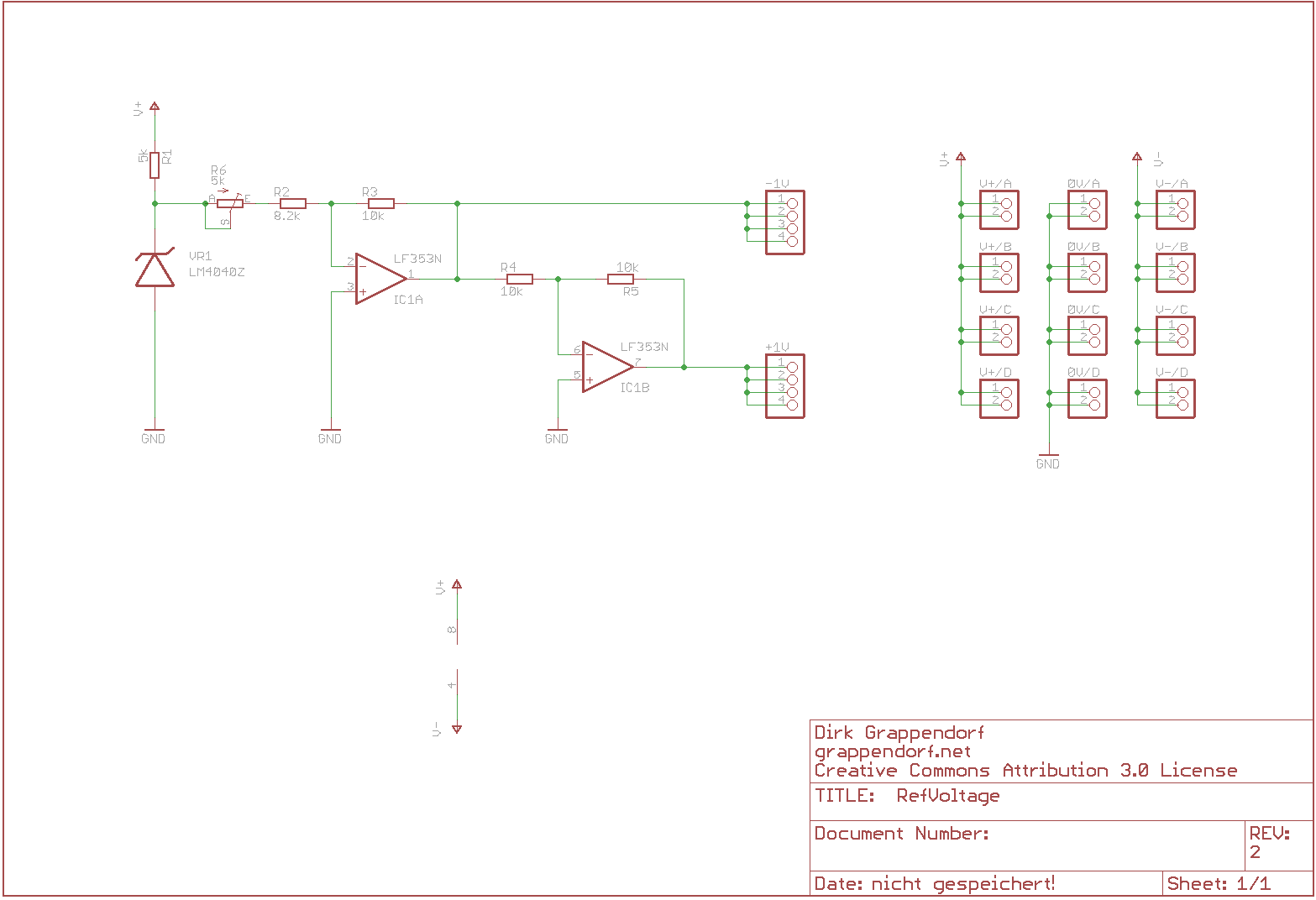

Schematic and PCB

Analog Computer Voltageref Schematic Analog Computer Voltageref Board

Download the schematic PDF

Github octocat Project Files

The analog computer project files are hosted at GitHub:


Subdirectory:  RefVoltage
