DC-to-DC Converter +/-15 V

The power supply of this analog computer is +/- 15 V. A simple DC/DC-Converter transforms an input voltage of 5 V to the needed +/- 15 V. I chose an aimtec AM3N-0515D-RZ mainly because of it's availability. Input voltage range is 4.5 V to 5.5 V. Maximum output current is 100 mA.

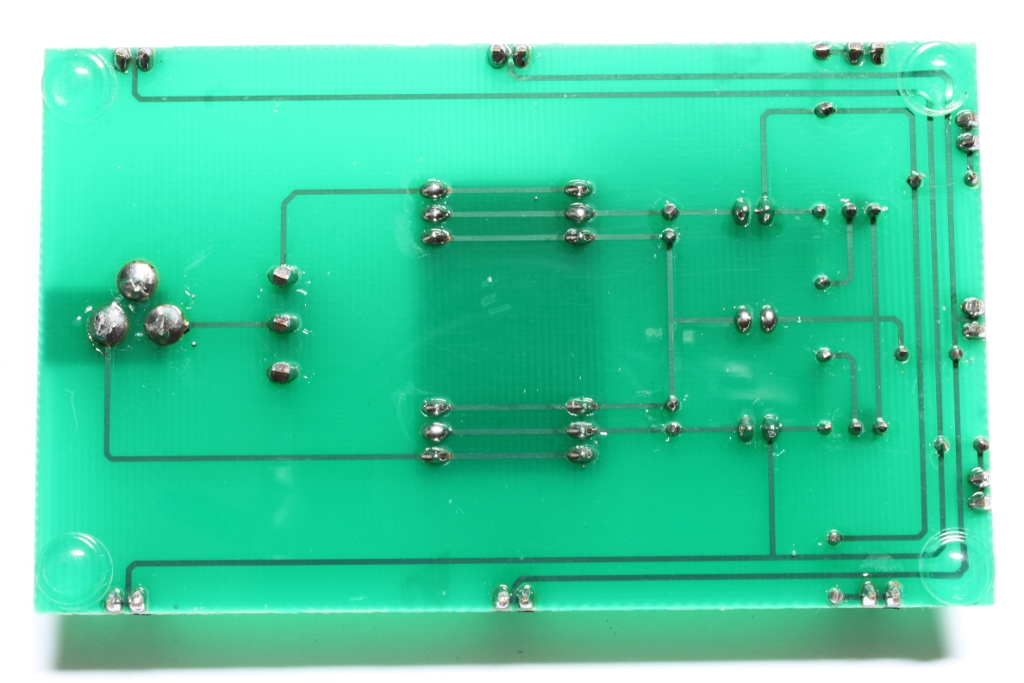

Analog Computer Power 1 Analog Computer Power 2

Schematic and PCB

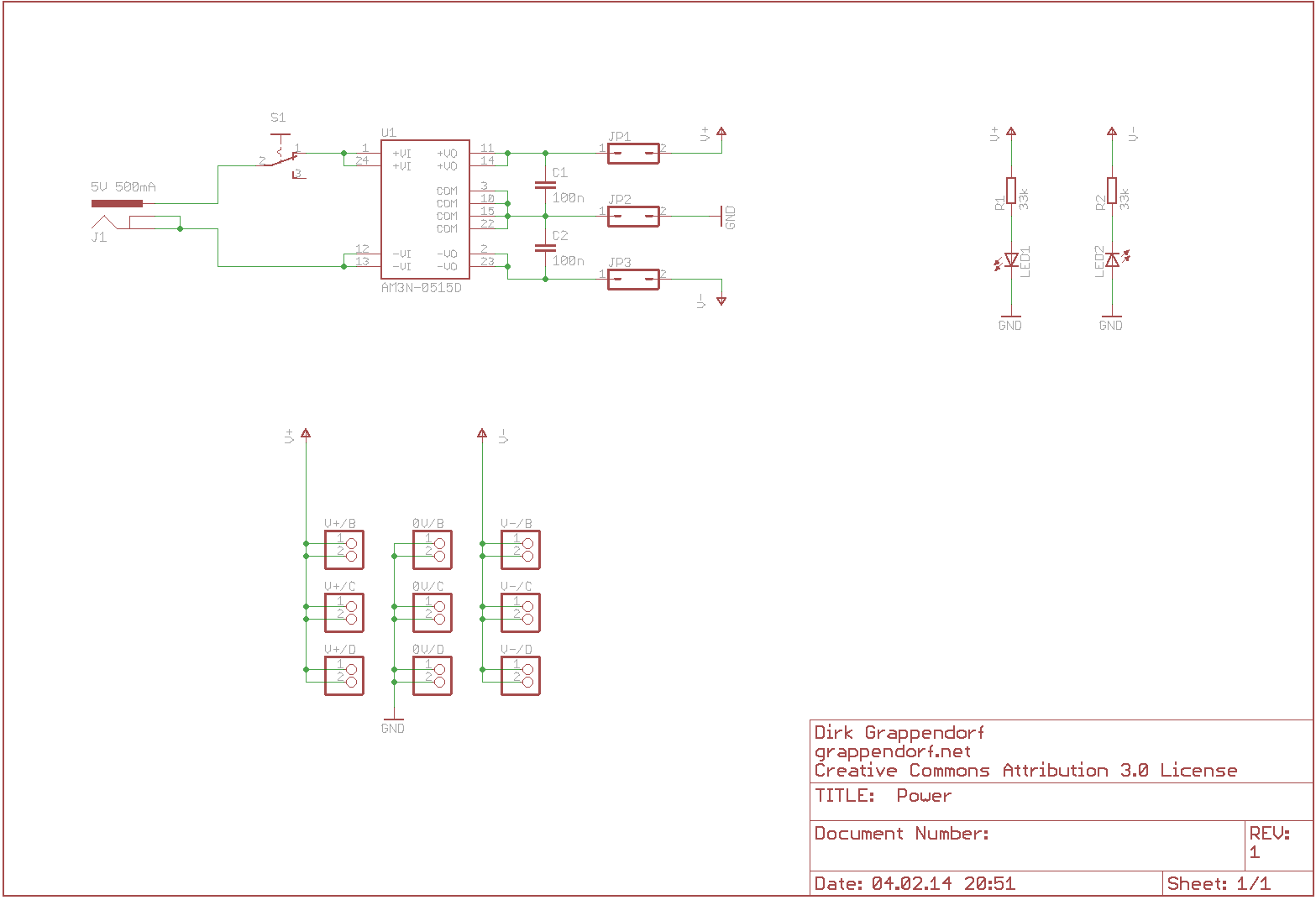

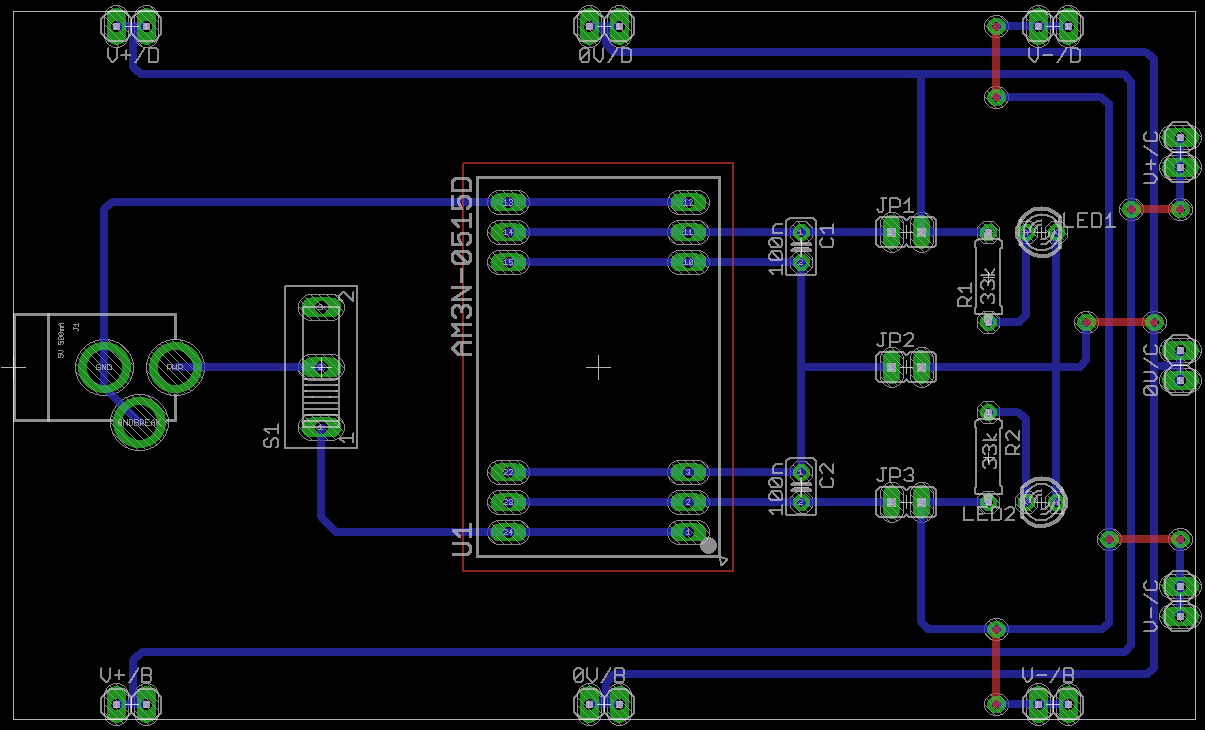

Analog Computer Power Schematic Analog Computer Power Board

Download the schematic PDF

Github octocat Project Files

The analog computer project files are hosted at GitHub:


Subdirectory:  Power

This page was last updated on 13. February 2016
