Multiplier

Analog Computer Multiplier 1 Analog Computer Multiplier 2

Instead of the very expensive AD534, this board contains two AD633 analog multipliers. The AD633 implements the following transfer function:

f(x+, x-, y+, y-, z) = 0.1 * (x+ - x-) * (y+ - y-) + z

Schematic and PCB

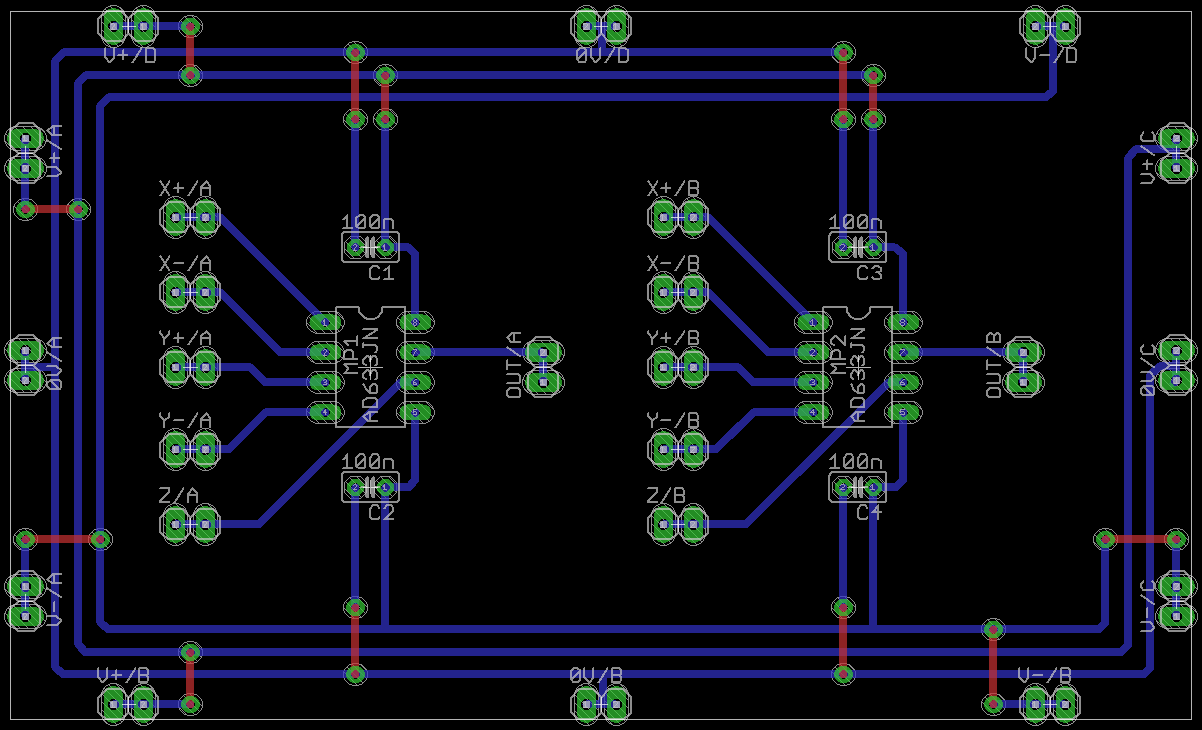

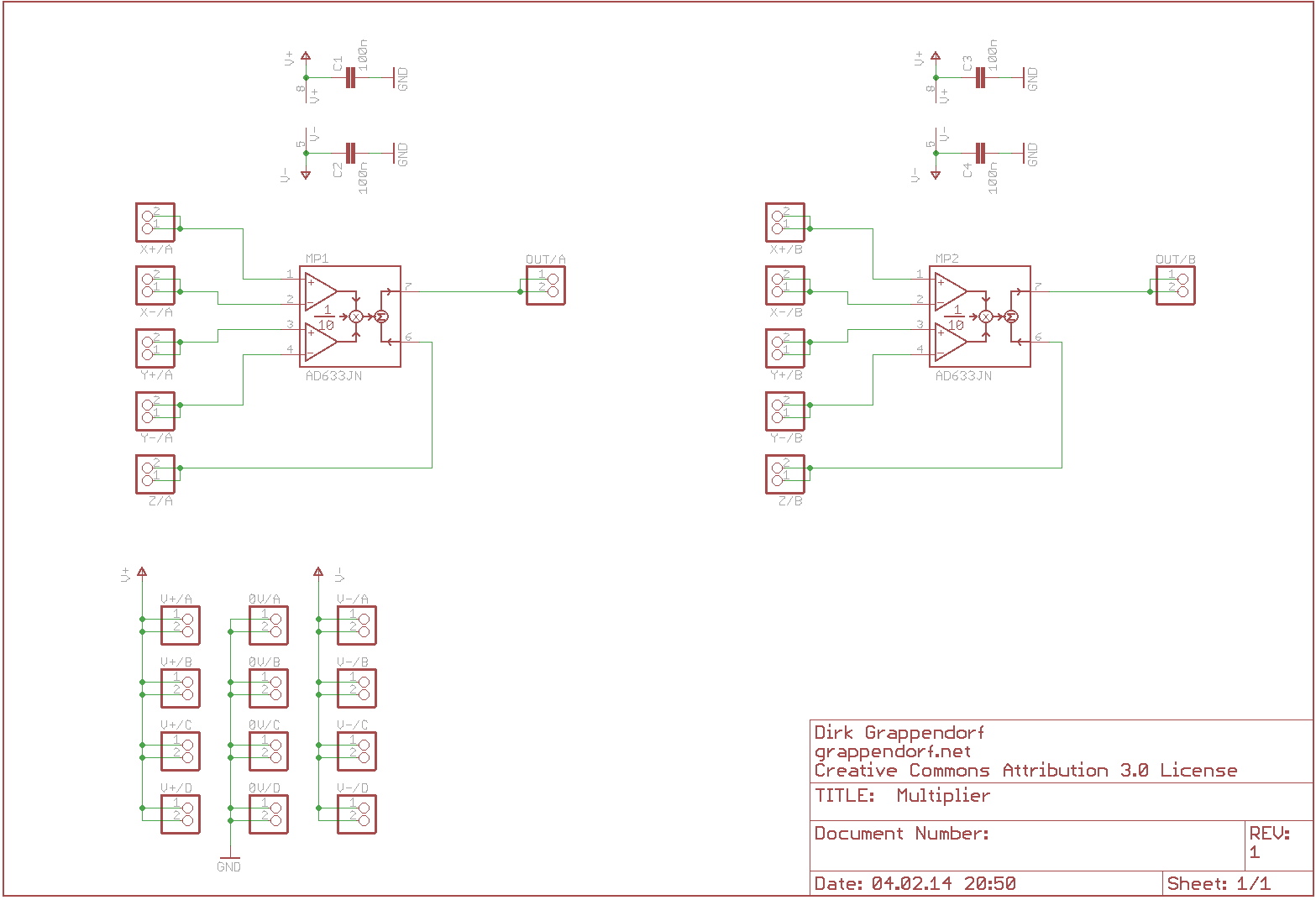

Analog Computer Multiplier Schematic Analog Computer Multiplier Board

Download the schematic PDF

Github octocat Project Files

The analog computer project files are hosted at GitHub:

https://github.com/grappendorf/analogcomputer

Subdirectory:  Multiplier
