Triangle to sine waveform generator

Analog Computer Sinegen 1 Analog Computer Sinegen 2

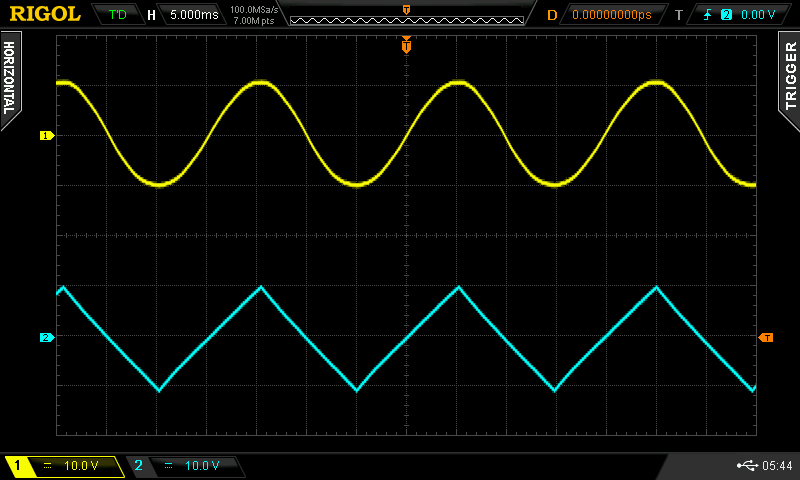

Analog Computer Sinegen Scope

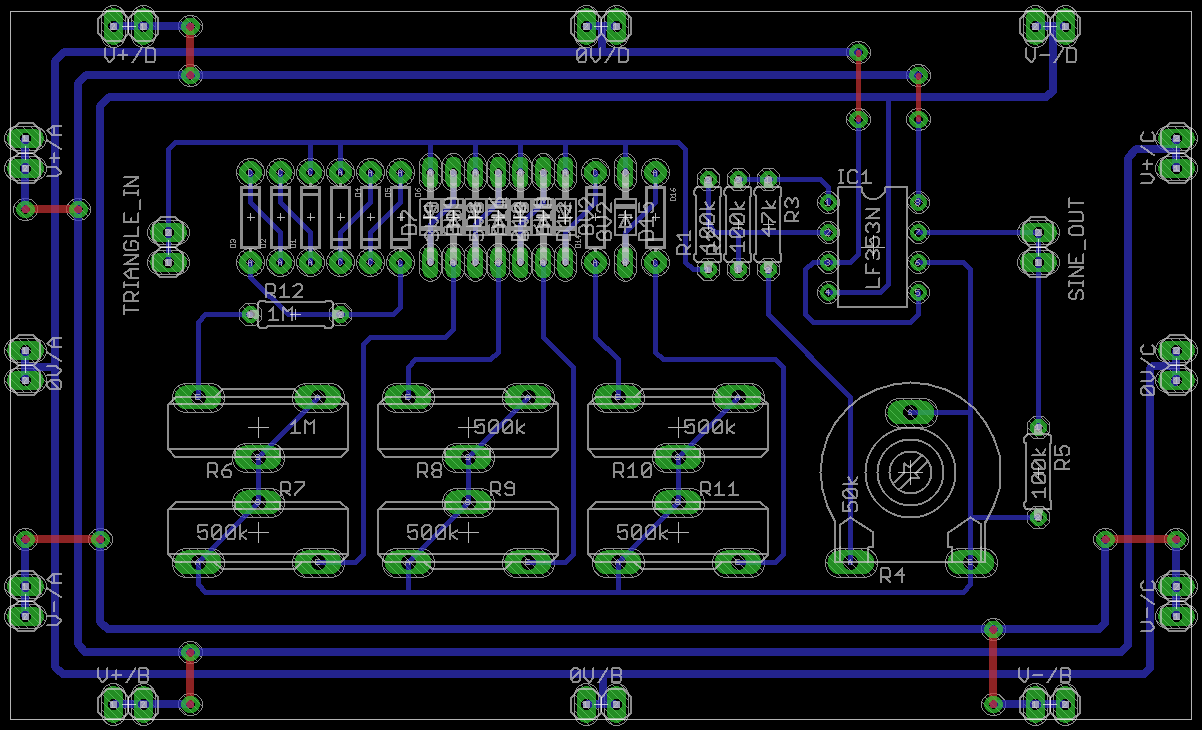

Schematic and PBC

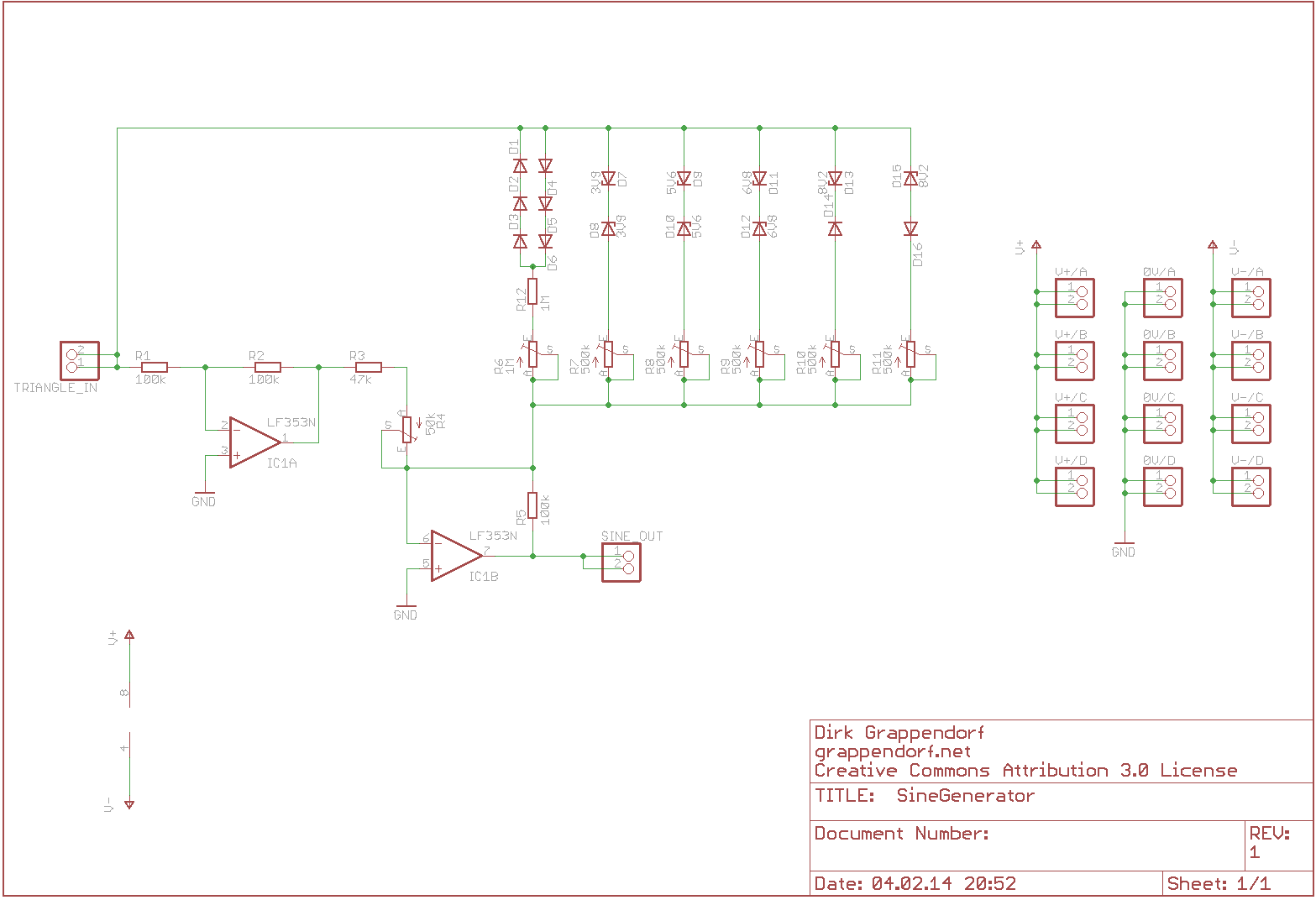

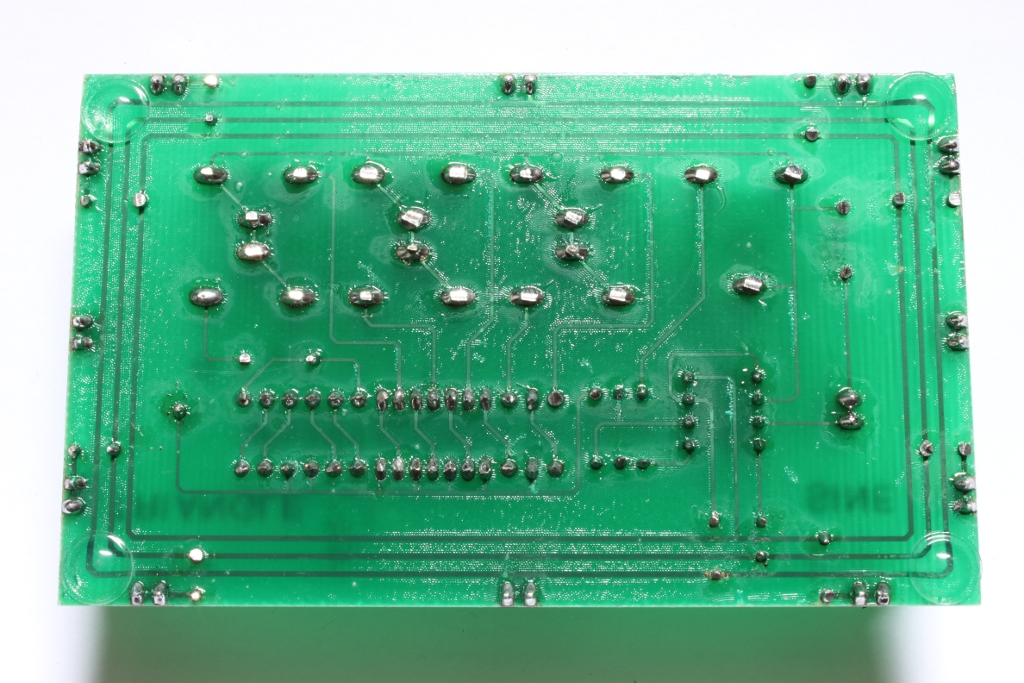

Analog Computer Sinegen Schematic Analog Computer Sinegen Board

This is the original circuit as described in Dr. Vogels Home Brew Analog Computer .

Download the schematic PDF

Github octocat Project Files

The analog computer project files are hosted at GitHub:

https://github.com/grappendorf/analogcomputer

Subdirectory:  SineGenerator
