Caretaker Reflow Oven
This is my version of a DIY reflow oven
This is my version of a DIY reflow oven. What's special about this? It is remote controlled. And it is integrated in my Caretaker home automation system. Why is this useful? Well, you can start your reflow soldering automatically, as soon as you get home. Or you can flash your room lighting, when the reflow process has finished.
And, more seriously, it allows you to control the oven from your web browser and get a nice temperature chart:
You can see the different stages of the reflow process: pre heat, soak, reflow and cooling.

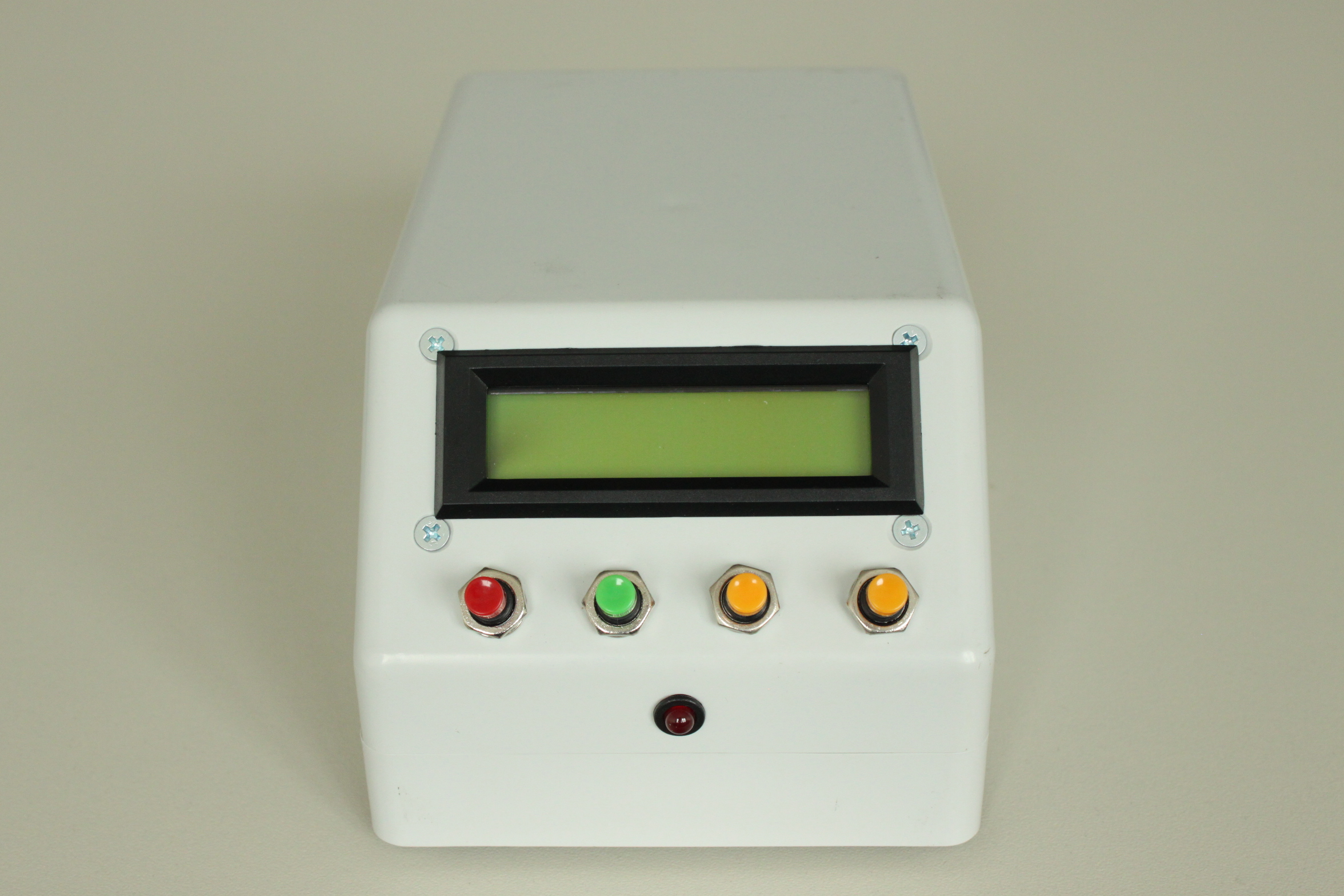

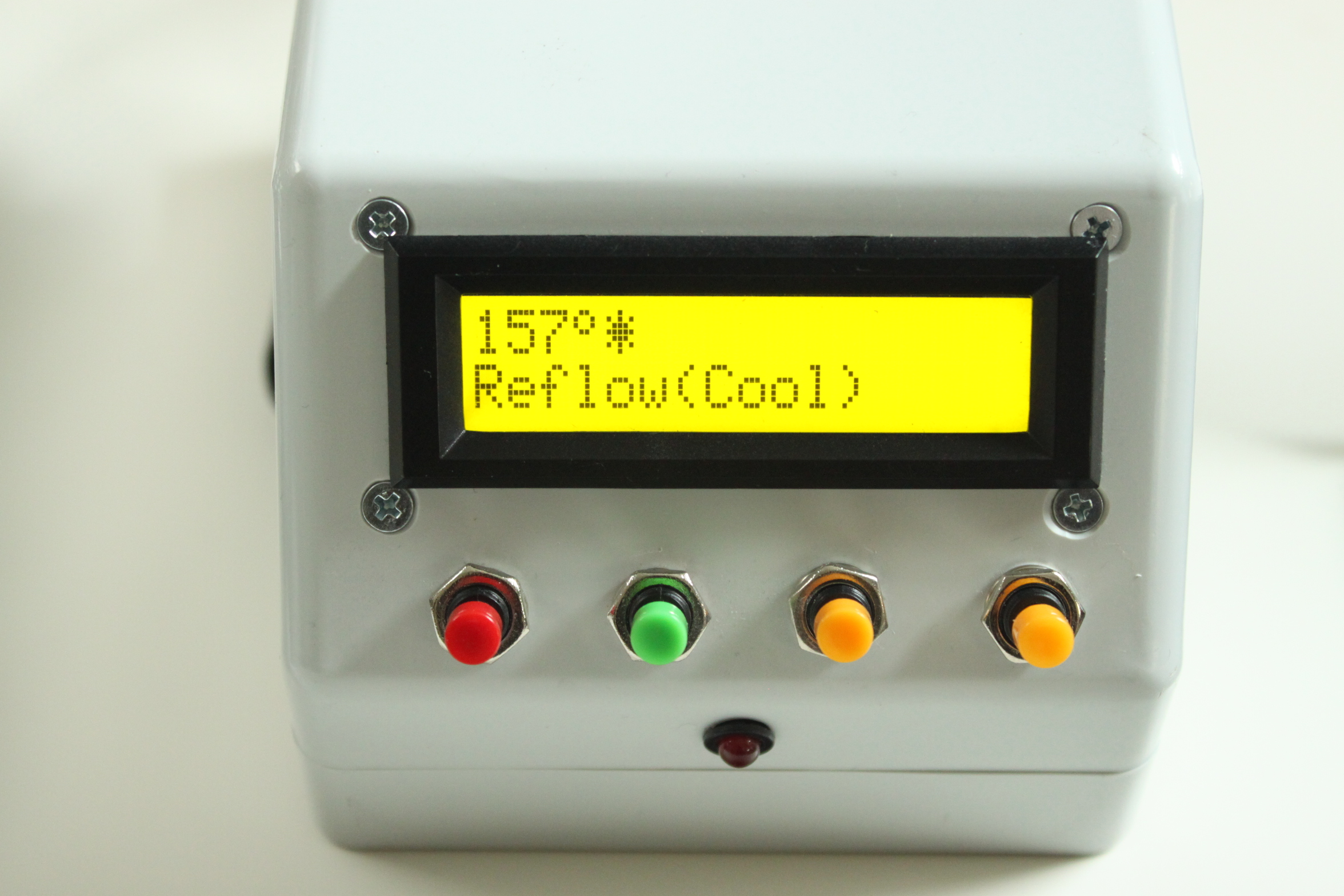

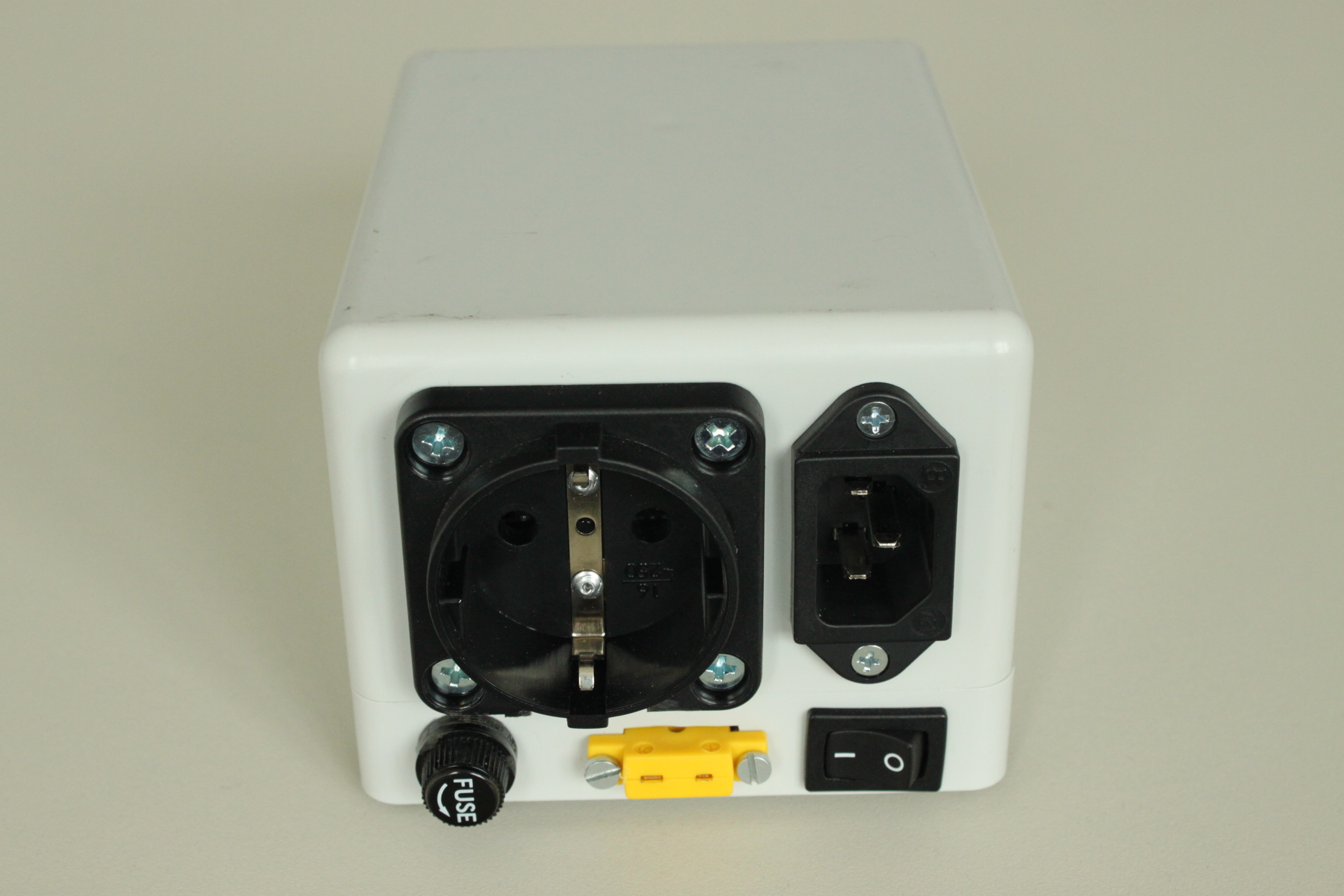

The front of the controller box contains a 16x2 LCD, four buttons and a LED that lights up when the heater is switched on. On the back there's the power input, heater power output, fuse, power switch and the thermoelement connector. Not shown here is the fan connector, which i've added later on.

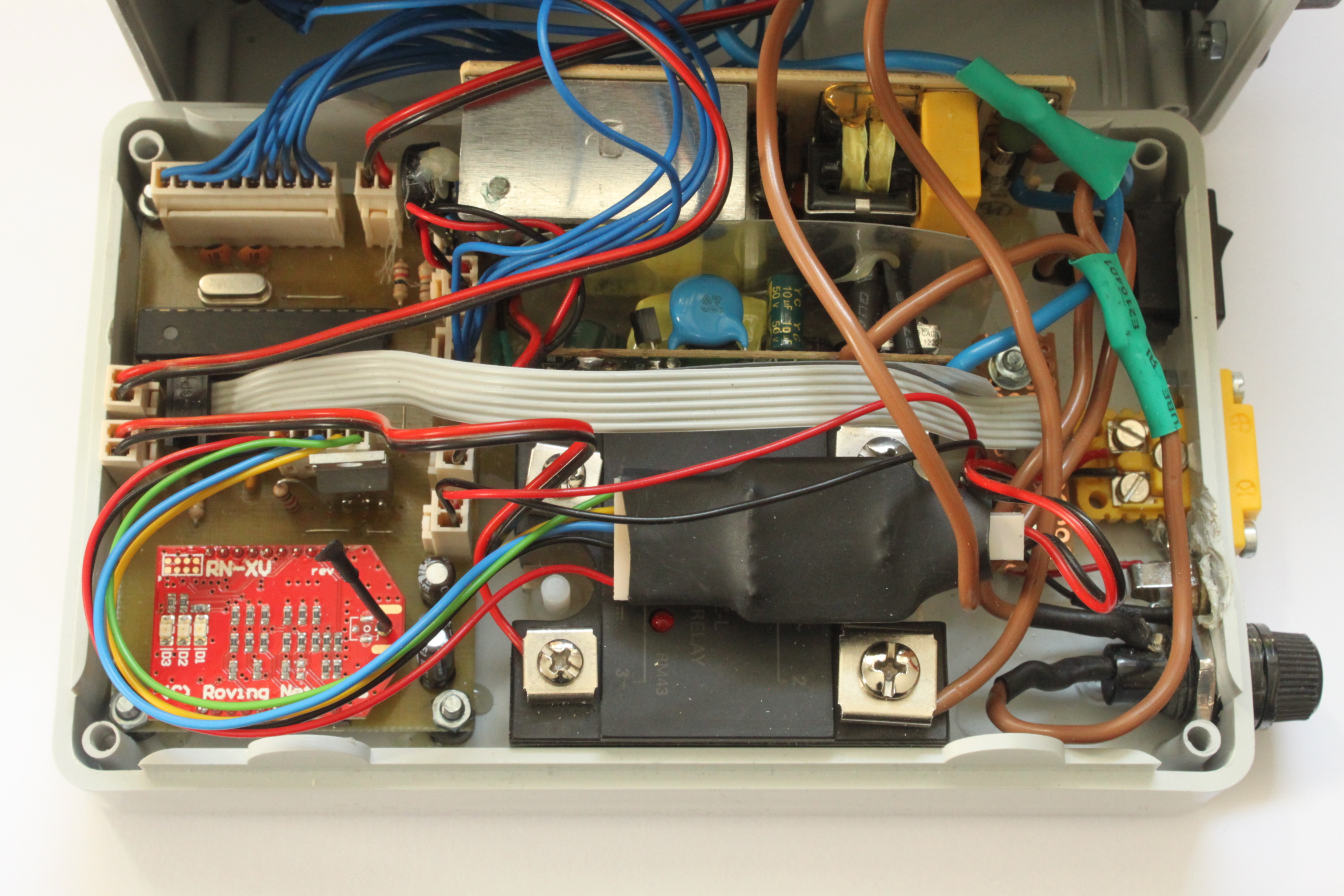

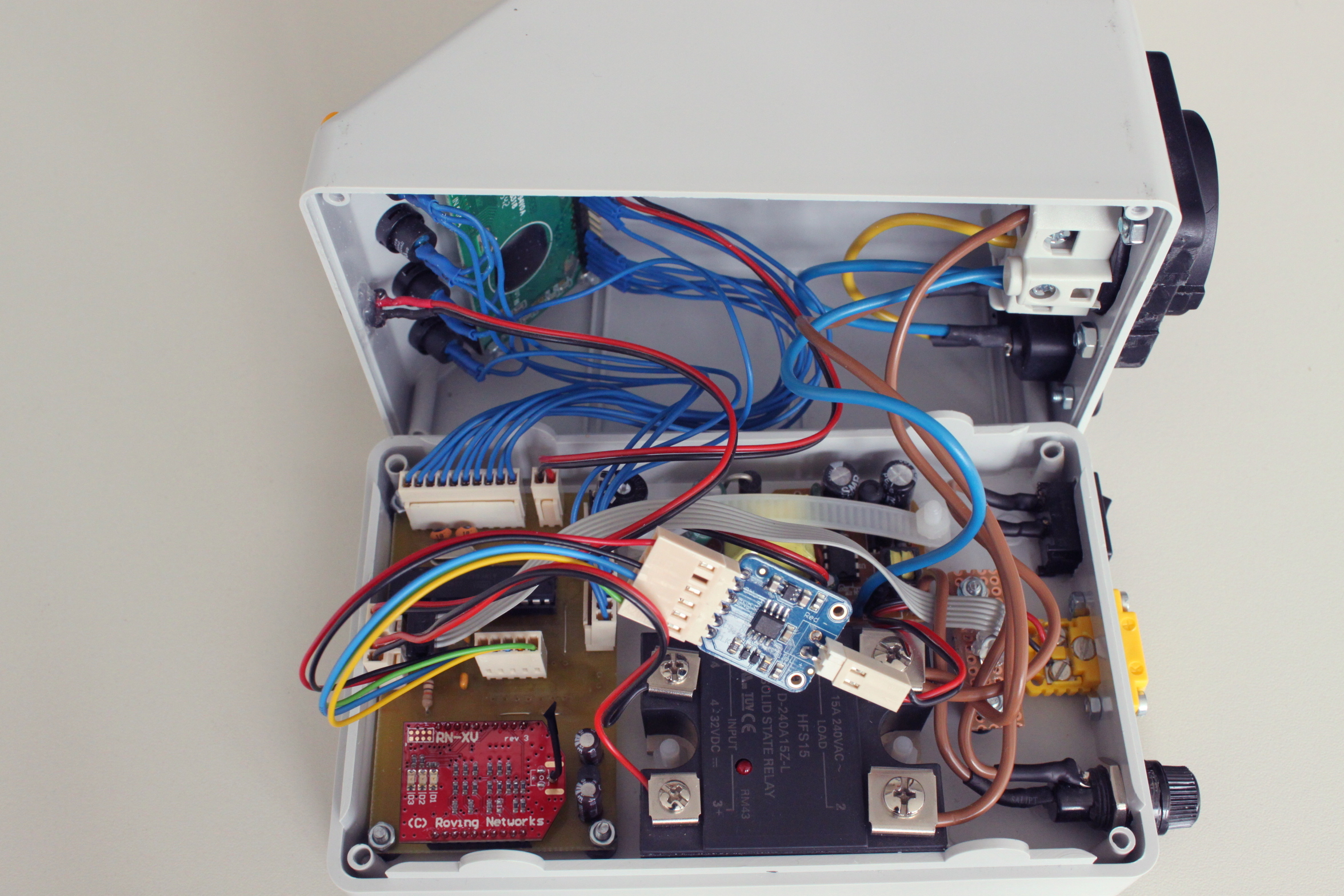

The left picture shows the first version of the reflow oven controller, the right picture shows the additions made to it for supplying a fan output. As always when you hack on your early designs it becomes quite a mess. But it works. But keep in mind that i haven't actually build the latest updated version of the Eagle PCB, so it may contain errors.
Technical details
- ATmega 328P
- 5V and 12V power supply (ripped of power plugs)
- Solid state relay for the heater (220V AC)
- K-Thermoelement
- MAX31855 amplifier with I2C readout (Adafruit breakout board)
- WiFly WLAN module with 3.3V regulator
- 2x16 HD44780 LCD with backlight
- Firmware written with the Arduino framework

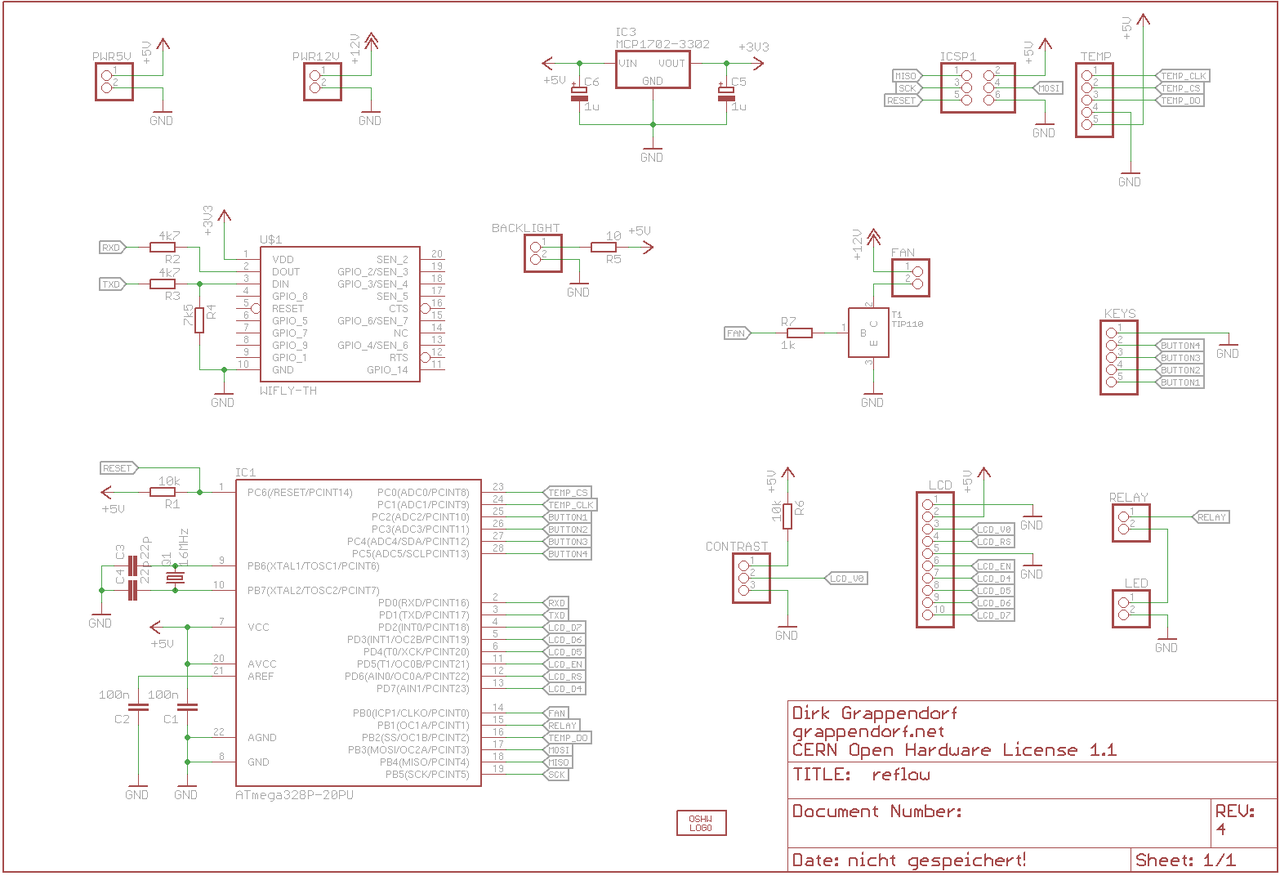

Board and Schematics
GitHub
 | The 6502 Home Computer source code and hardware design is hosted at GitHub: https://github.com/grappendorf/caretaker-devices Subdirectory: caretaker-device-reflow-oven |
It contains the source code and all Eagle (V6) PCB layout files.
The code can also be compiled without the support for my home automation system. In the circuit you can then leave out the WiFly module and it's voltage regulator.
